2003/10/03

WebCamera is a video camera device that provides remote viewing via the Internet. This device can be connected to any PC for the User to browse an online viewing of the subject places under surveillance. The WebCamera also supports digital input and output for security system. For live demo, please press the URL below: DM&P - Taiwan http://61.219.230.58 DM&P - Japan http://202.224.239.140 DM&P - USA http://67.113.73.44 DM&P - China Under construction Our WebCamera is a standalone device that is so versatile that you do not need a PC to do the operation. It also supports separated view windows from full screen / 4 windows / 16 windows.

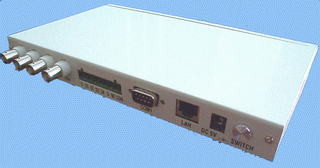

Face Panel View Rear Panel View - Cable Connection

 DVR-7410

DVR-7410 is a Single Channel Digital Video Recorder that is designed with the concept on a standalone platform using DM&P x86 technology. An exquisite touch of the class built on a rigid box makes this D-V-R, a very sensational device in every home, office, and commercial arcade alike. This Exci-thing DVR connotes the best video Input/Output display of up to 720x480 and 720x576 for NTSC & PAL signal respectively - so extravaganza in style & design that makes this device the far best resolution ever had in the video recording industry. Better viewing performance on MJPEG format for motion and sound. Exotic and Enduring for Ergonomics. Highly intelligent with visual touchpads for easy usage (see figure for the elegant user's defined control pad. So stay tunes to danzle our DVR to make the best of your life with lovely memories. Please visit DVR web page to get more information. If you have ODM/OEM project about DVR, call us or mail to info@copyall.com.

 Ordering information

 Features

• Separated view windows for 16 channels.
• NTSC / PAL support.
• Sensor/Alarm: 4 set NC/NO connector map to 4 channels video-in.
• Capacity of storage: 1 internal Compact Flash slot can install up 256MB CF card.
• User's option to record time range before/after trigger enabled.
• Record frame can be viewed by Microsoft IE browser.

 Specifications

 Download

• Firmware (2002/09/11)
  • WebCamera Version 1.25 Auto-Update Program for Windows (471KB)
  • WebCamera Version 1.25 ZIP File (440KB)
  • Update history
• Setup Program
  • Setup program for Windows (111KB)

 Development

How to develop:

• Install VGA
• Install Keyboard
• Install MicroDisk Module or Hard Disk

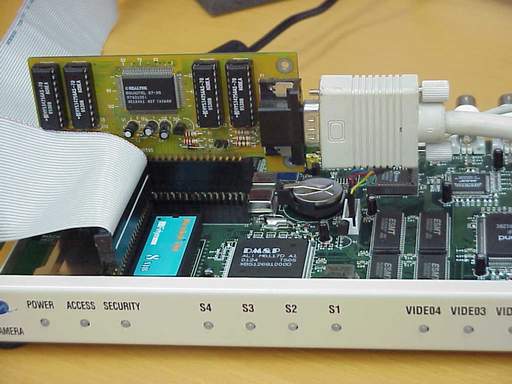

• Our Development Kit

  Data Sheet:

• DM&P M6117D CPU Data Sheet & Example (692KB)
• W99200F MPEG-1 Video Encoder (41KB)
• W99200 MPEG-1 Video Encoder Data Sheet (1,222KB)
• SAA7113H 9-bit Video Input Processor Data Sheet (280KB)

  Circuit:

• 1/9 Enhance Tiny Network Computer (22KB)
• 2/9 M611D for 386SX System (15KB)
• 3/9 M611D for 386SX System (27KB)
• 4/9 M5113 I/O Chip (19KB)
• 5/9 Realtek NE2000 (RT8019AS) Ethernet (22KB)
• 6/9 W99200 MPEG Encoder Generic Bus Interface (16KB)
• 7/9 W99200 MPEG Encoder (24KB)
• 8/9 SAA7113 Video Decoder (16KB)
• 9/9 WebCamera Input/Output (16KB)

  Library for DOS and Example:

• Home Page Programming Guide
• W99200 C Library for DOS Version 0.11 (36KB)
• DSock, DOS TCP/IP C Library for DOS
